New Precomputed Neuron and Expression Pattern Similarity Scores on VFB
VFB provides precomputed NBLAST scores to assist in the discovery of 1) morphologically similar neurons within and across connectome datasets and 2) potential split-GAL4 driver lines which label neurons from connectomic datasets.
VFB NBLAST scores currently cover:
Connectome datasets:
FAFB-FlyWire (v783) FlyWire Codex
Male-CNS optic lobe (v1.0.1) neuprint optic-lobe
FlyCircuit (1.0) site
FAFB-CATMAID (all datasets on the VFB server) CATMAID server
Hemibrain (1.2.1) neuprint hemibrain
Split-GAL4 driver line images:
Images provided from FlyLight. New images are being added to VFB. FlyLight Split-GAL4

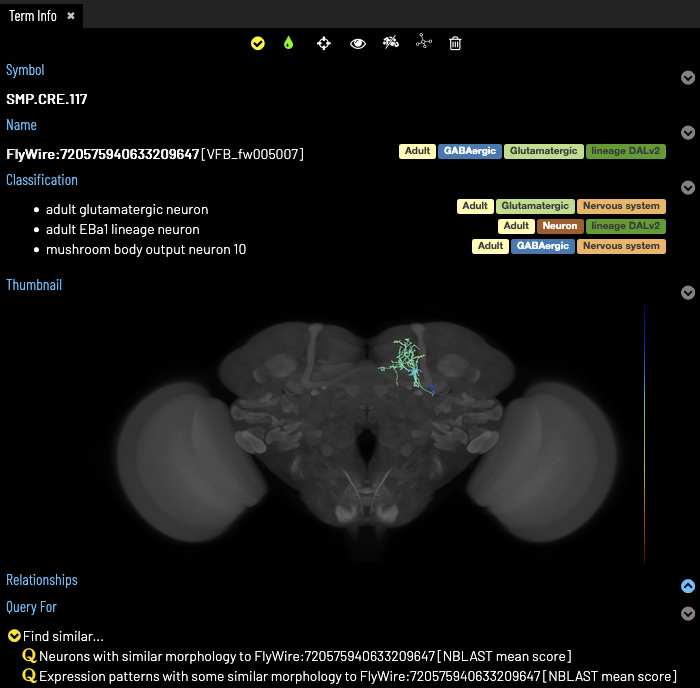

NBLAST queries can be accessed in the term info panel for individuals (neuron/split-GAL4 images) (at bottom of the example image below). The queries are only available if there are any results for that individual.

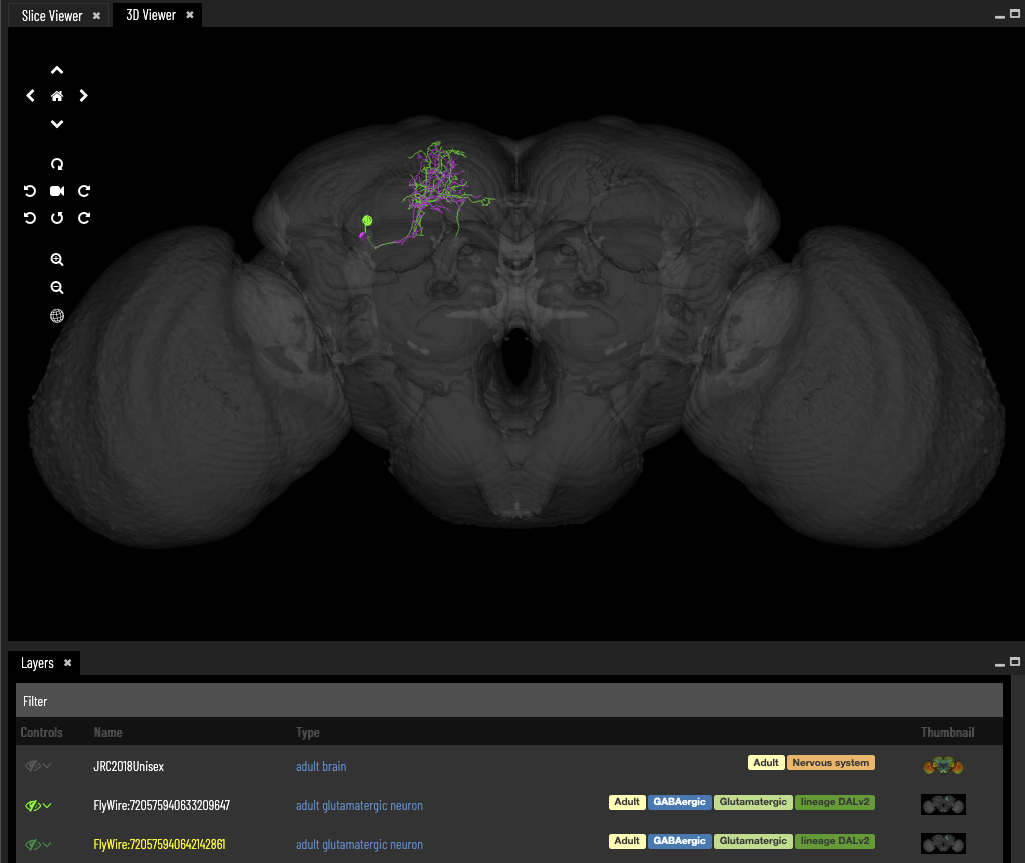

Neuron-to-neuron example match:
Neuron-to-split-GAL4 expression pattern example match:
